The page below is is for critical care personal working in a hospital and for dedicated critical care transport teams. If that is you, you are in the right place. Carry on!
We have a dedicated website for prehsopital transport ventilation for first responders, emergency medical services and armed forces. If that is you, please consider switching to the EMS website.
Communication board options for:
Various solutions are available for all the main types of helicopters and ambulances, as well as for hospital beds, stretchers, surfaces, shelves, poles, rails, and ceilings.

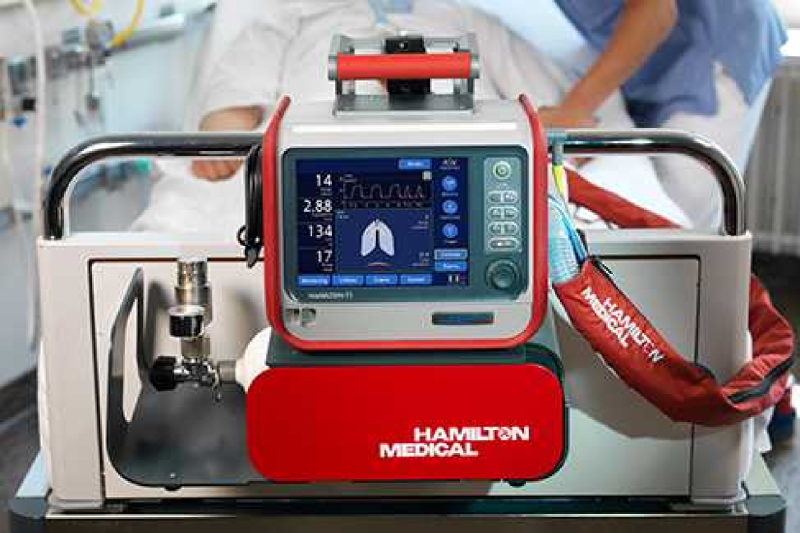

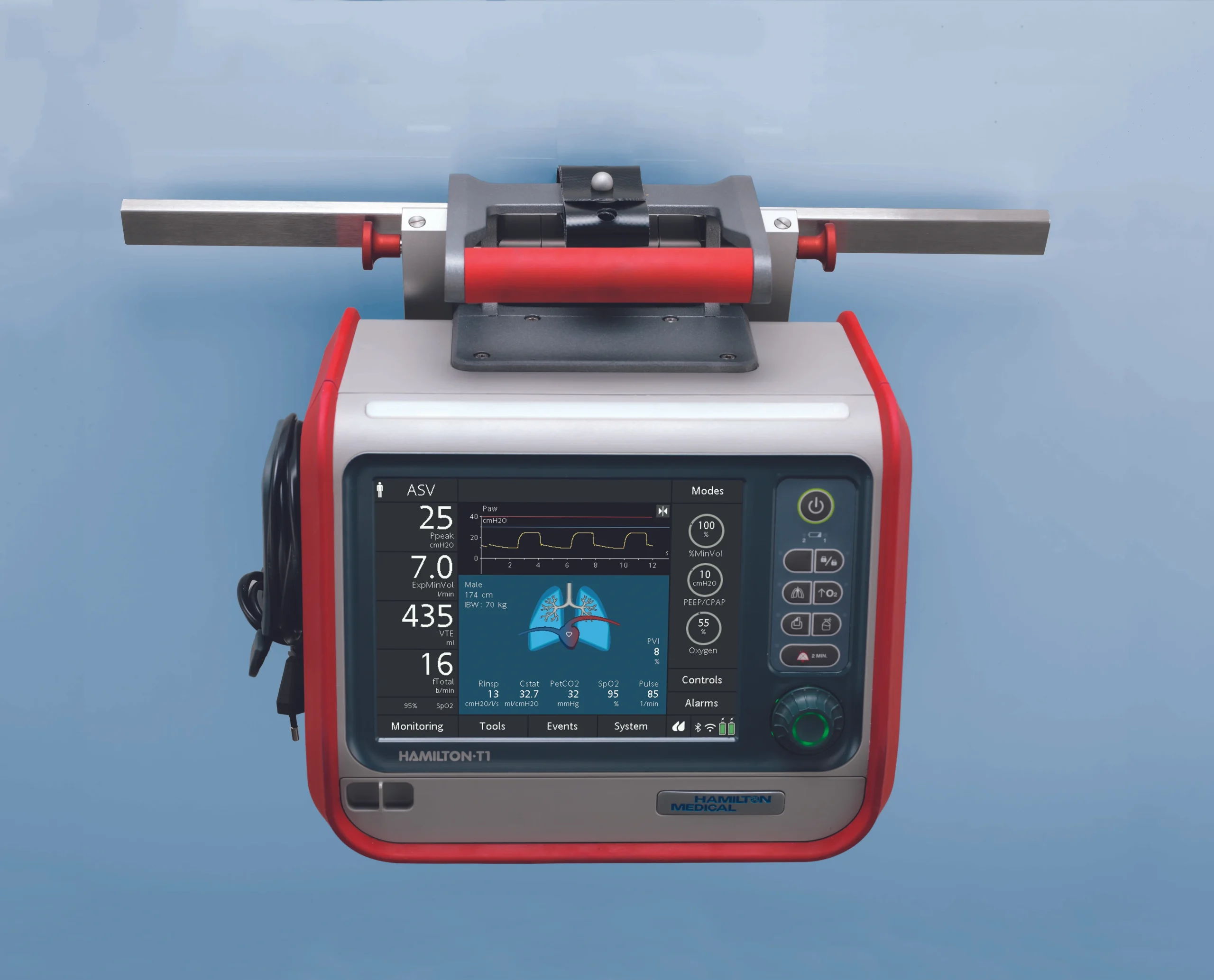

With four different types of handles and multiple mounts, the HAMILTON‑T1 is a portable ventilator that adapts to your specific environment and situation.
CPR ventilation adapts the ventilation settings if you have to perform CPR. It shows the main monitoring parameters and curves relevant to the situation, and supports your workflow with quick access to preconfigurable settings, adequate alarm and trigger adjustment, and a CPR‑timer display.

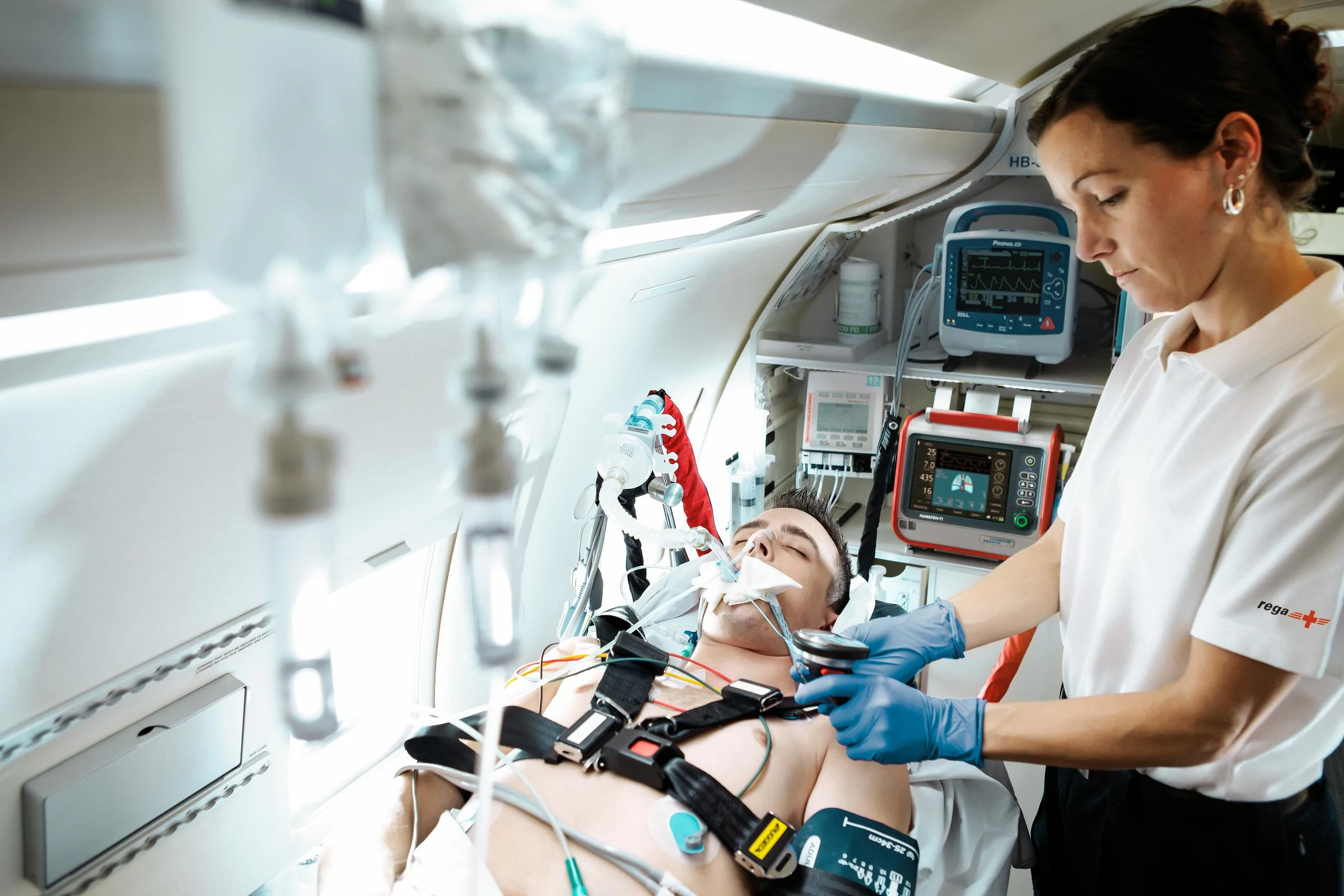

As a transport ventilator for ambulances, helicopters, and more, the HAMILTON‑T1 is a favorite for many rescue crews. According to the HOVER survey (Handover of ventilated Helicopter Emergency Services [HEMS] patients in the emergency roomA) conducted online amongst air rescue organizations in Germany, Austria, Switzerland, Italy, and Luxemburg in 2019, 71% of those organizations chose the HAMILTON‑T1 for their intensive care helicopter (Hilbert-Carius, P., Struck, M.F., Hofer, V. et al. Nutzung des Hubschrauber-Respirators vom Landeplatz zum Zielort im Krankenhaus. Notfall Rettungsmed 23, 106–112 (2020)1).
Ventilators suitable for pandemics and mass casualties must be versatile and meet various requirements. The HAMILTON‑T1 meets or exceeds all requirements in the AARC Guidelines for Acquisition of Ventilators to Meet Demands for Pandemic Flu and Mass Casualty Incidents (https://www.aarc.org/wp‑content/uploads/2020/03/ventilator‑acquisition‑issue‑paper.pdfB).
| Patient groups | Adult/Ped, Neonatal |
|---|---|
| Dimensions (W x D x H) | 320 x 220 x 270 mm (ventilation unit) 630 x 630 x 1380 mm (without handle) 630 x 630 x 1433 mm (with handle) |
| Weight | 6.5 kg (14.3 lb) 18.5 kg (40.8 lb) with trolley |
| Monitor size and resolution | 8.4 in (214 mm) diagonal 640 x 480 pixels |
| Detachable monitor | |
| Battery operating time | 4 h with one battery 8 h with two batteries |
| Hot‑swappable battery | |
| Air supply | Integrated turbine |
| O2 connector | DISS (CGA 1240) or NIST |
| Connectivity | CO2/Nurse Call/COM1, CO2/SpO2/COM1, CO2/SpO2/Humidifier & COM1, USB port, RJ‑45 Ethernet port |
| Loudness | 43 dB in normal operation |
| Volume controlled, flow controlled | |
|---|---|
| Volume targeted, adaptive pressure controlled | |
| Pressure‑controlled | |
| Intelligent ventilation | ASV®, INTELLiVENT®‑ASV® (option) |
| Noninvasive ventilation | Option |
| High flow oxygen therapy | Option |
| Visualization of lung mechanics (Dynamic Lung) | |
|---|---|
| Visualization of the patient’s ventilator dependence (VentStatus) | |
| Volumetric Capnography | |
| SpO2 monitoring | |
| Lung stress and strain monitoring (Lung Impact panel) | Option |
| Transpulmonary pressure monitoring | Option |
| Recruitability assessment and lung recruitment (P/V Tool Pro) | |
|---|---|
| Patient‑ventilator synchronization (IntelliSync+) | Option |
| CPR ventilation | |
| Hamilton Connect Module | Option |
| Suctioning tool | |
| SpeakValve compatibility | Option |
| On‑screen help | |
| O2 assist | Option |
| Remote connection to HAMILTON‑H900 humidifier | Option |
|---|---|
| Integrated IntelliCuff cuff pressure controller | |
| Integrated pneumatic nebulizer | |
| Integrated Aerogen nebulizer | |
| Compatibility with Sedaconda ACD anesthetic delivery system |
We are constantly working on further evolving our products. New features are added and existing features improved to ensure you always have access to the latest ventilation technology over your ventilator’s lifetime.
